MAQUET HCU 30

Product Description

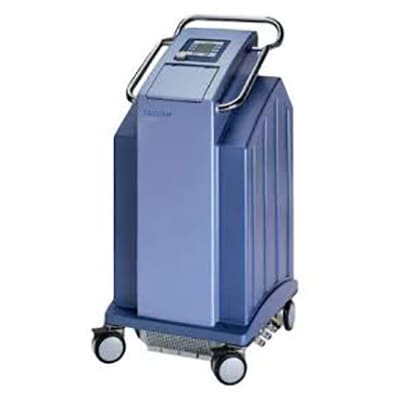

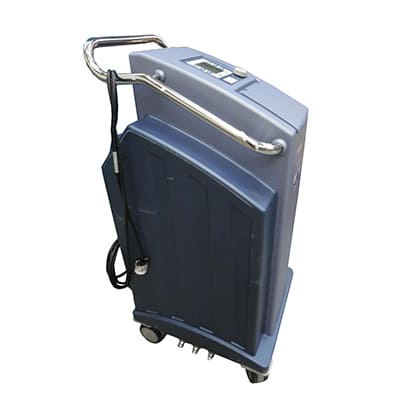

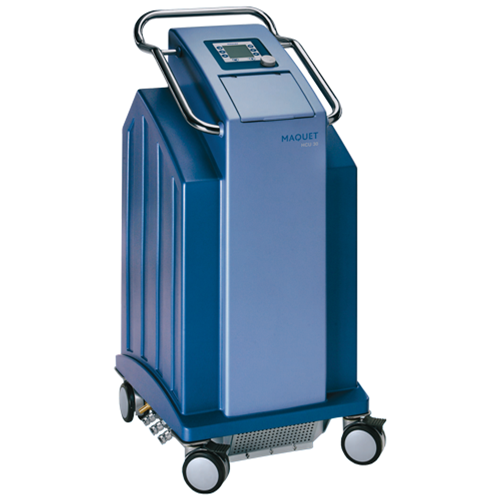

The MAQUET HCU 30 heater/cooler system is used to circulate water through heat exchange circuits to warm or cool a patient during cardiopulmonary bypass procedures that last 6 hours or less. The HCU 30 heater/cooler unit supplies temperature-controlled water for heat exchangers or hyper-hypothermia blankets. The temperature of the water can be adjusted from 1°C to 40.5°C. This MAQUET heater/cooler unit 30 features a 26-liter tank. An Internal safety system on the HCU 30 monitors the regulation to prevent the water from rising above 41.3°C.

• High cooling capacity with its fast ice-building technique and powerful compressor.


• A large capacity heater that incorporates precise electronic control.


• Fast priming and automatic de-airing.

Technical Specification

Dimensions

• Size: (H x W x D) 106 x 46.5 x 52.5 cm
• Weight Approx.: 95 kg empty, 121 kg full
• Noise level (normal operation): 38 Lpa dB

Temperature Control

• Control range: 1°C to 40,5°C
• Setting resolution: 0.1°C
• Temperature measurement accuracy: ±0.3°C
• Temperatures display range: 0°C to 99°C

Cooling system

• Tank volume: 26 litres
• Initial cooling capacity: (relative 20°C) 6250 kJ
• Continuous cooling capacity: 4270 kJ/h (1186 W)

Heating system

• Capacity: (max. values) 3100 W (230 V), 1800 W (115 V), 1500 W (100 V)

Circulation system

• Flow capacity, main circuit: Approx. 21.0 l/min at zero head (adjust-able)
• Flow capacity, cardioplegia circuit: Approx. 7.0 l/min at zero head
• Maximum pressure, main circuit: Approx. 2.4 bar (adjustable)
• Maximum pressure, cardioplegia circuit: Approx. 0.9 bar

Power supply

• Mains: 200-240 V/50 Hz, 220 V/60 Hz, 100-120 V / 60 Hz, 100 V/50 Hz/li>
• Mains fuse: 16 A (230 V)
• Power consumption: 3680 W (230 V)
