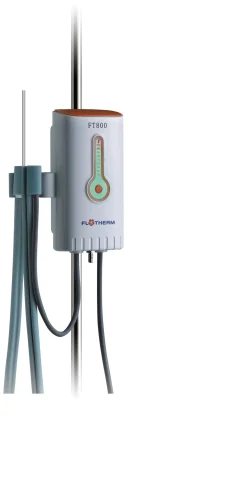

Blood And Fluid Warmer, For Hospital

Product Description

Technical Specifications:

• Model: FT800


• Temperature setting: 39??C ex-works


• Power supply: a.c.100~240V/50~60Hz


• Power consumption: Max. 120VA


• Type of protection against electric shock: Class I


• Degree of protection against electric shock: BF Applied part;


• Defibrillation-protected


• Degree of protection against ingress of liquids: IPX2


• Temperature accuracy: ±2.0??C


• Overheat protection: 42??C/43??C


• Low temperature alarm 33??C


• Warming up time: From 20??C to 36??C approx. 2 min.


• Operating mode: Continuous


• Dimension (W*D*H): 85×65×175mm


• Net Weight: 1.2kg


• Warming profile: - length 1400mm


•  - Compatible IV tube 3.5-5.0mm O.D.


• * For other options of warming profile, please contact the


• Effective, safe and easy to operate device for all medical departments:


• Blood transfusion / infusion for the patients during operation or after


• operation


• Routine blood transfusion and infusion in the clinical setting


• Enteral and parenteral nutrition


• Infusion to children and neonates


• Normal infusion in cold condition


• Heating up to the patient: IV tube is completely wrapped in, no heat loss


• One-touch-control:


• Temperature automatically controlled


• Actual heating temperature in real time displayed

Safety Features:

• Permanent running self-tests


• Double independent over-heating protections and automatic cut off


• Visual and acoustic alarm for high temperature / low temperature/sensor fault


• Advanced dry heating technology: Quick warming up and effective heating


• Open system: Accepts standard IV tube, no special disposables needed, economical warming solution without extra consumable costs


• Easy to operate: quick simple installation, 24 hours continuous operation
